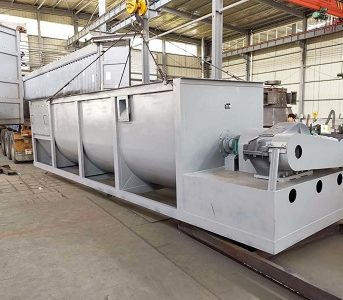

Lime Hydrator is a mixing reactor where quicklime and water are mixed in a designed rate to fully react and produce hydrated lime powder. When the hydration system is started, the transmission mechanism drives the stirring mechanism to stir, and the calcium oxide enters the first hydrator’s chamber through the belt weighing feeder. The PLC control system controls the water spray device to start spraying water. The material and water are pushed to the chamber of the second hydrator by special-angled blades on the shaft while being fully mixed. The second-stage mixing shaft is also equipped with special-angled blades, which push the materials to the third-stage hydrator chamber while fully stirring. The three-stage mixing shaft is also equipped with special-angled blades, which separates the over-burned lime particles in the material from the outer layer of calcium hydroxide while discharging the hydrated product. The temperature measuring element on the hydrator body transmits the temperature of the material in the hydrator chamber to the PLC control system for monitoring in real time, and adjusts the water supply in time. The steam along with some hydrated lime particles generated by the material reaction is filtered by the pulse bag filter, lime particles are...
