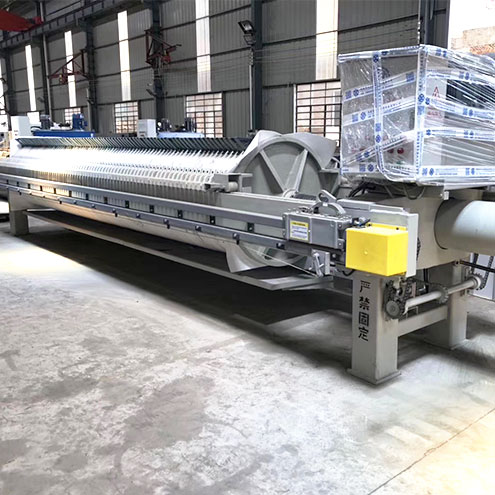

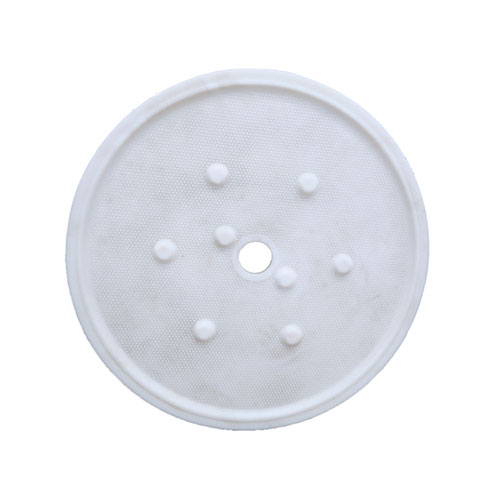

Our Round Filter Press for Ceramics is specially designed with higher pressure to dewater ceramic raw materials. this filter press features round filter plate, which can realize much higher filtration pressure than standard shaped plate filter press, thus residue cake moisture can be reduced to minimum content. It is mainly used for stone machining wastewater, ceramics, kaolin clay, construction materials, etc..
Our Round Filter Press for Ceramics is specially designed with higher pressure to dewater ceramic raw materials. this filter press features round filter plate, which can realize much higher filtration pressure than standard shaped plate filter press, thus residue cake moisture can be reduced to minimum content. It is mainly used for stone machining wastewater, ceramics, kaolin clay, construction materials, etc..
Model | Filter area | Plate size | Cake thickness | Chamber volume | Number of plates | Filtration pressure | Total weight | Overall dimension | Foundation Size (mm) | ||
(m2) | (mm) | (mm) | (L) | (pcs) | (MPa) | (kgs) | LxWxH(mm) | L | B | D | |
XY40/800-25 | 40 | 800 | 25 | 499 | 40 | 1.0-3.0 | 4554 | 4300x1100x1060 | 3500 | 530 | 1050 |
XY50/800-25 | 50 | 621 | 50 | 5150 | 4820x1100x1060 | 4020 | |||||
XY60/800-25 | 60 | 753 | 60 | 9710 | 5340x1100x1060 | 4540 | |||||
XY70/800-25 | 70 | 875 | 70 | 5760 | 5860x1100x1060 | 5580 | |||||
XY80/800-25 | 80 | 1000 | 80 | 6860 | 6200x1100x1060 | 5660 | |||||
XY80/1000-30 | 80 | 1000 | 30 | 1210 | 59 | 1.0-3.0 | 6652 | 7254x1311x1399 | 5857 | 680 | 1400 |
XY90/1000-30 | 90 | 1350 | 66 | 6848 | 7709x1311x1399 | 6312 | |||||
XY100/1000-30 | 100 | 1500 | 74 | 7072 | 8229x1311x1399 | 6850 | |||||
XY110/1000-30 | 110 | 1650 | 81 | 7268 | 8684x1311x1399 | 7305 | |||||
XY120/1000-30 | 120 | 1800 | 88 | 7464 | 9591x1311x1399 | 7758 | |||||
XY130/1000-30 | 130 | 1950 | 96 | 7688 | 10111x1311x1399 | 8246 | |||||
XY140/1000-30 | 140 | 2100 | 103 | 7884 | 10566x1311x1399 | 8735 |
