Ribbon Mixer

Description of Helical Ribbon Mixer:

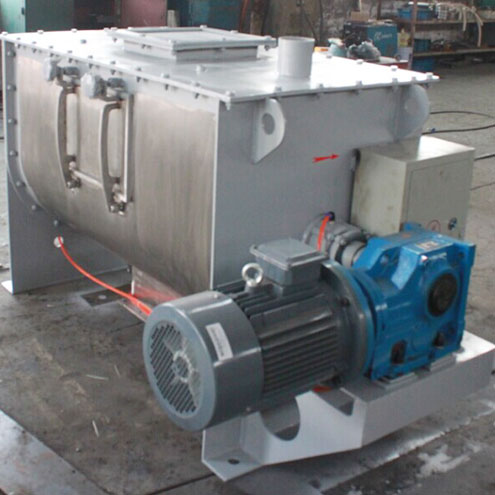

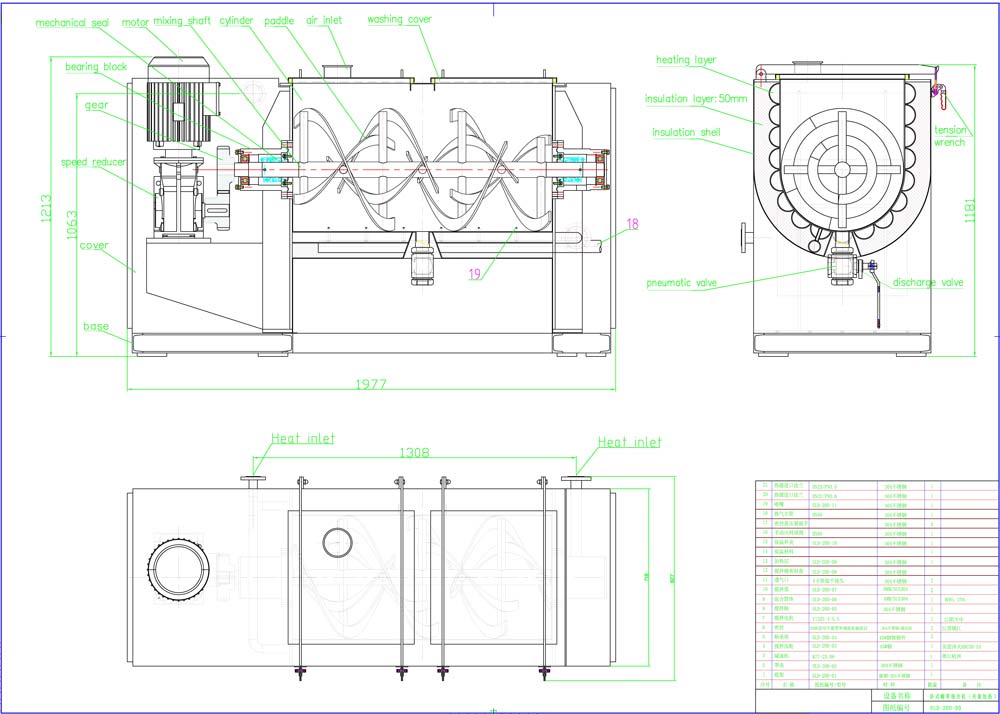

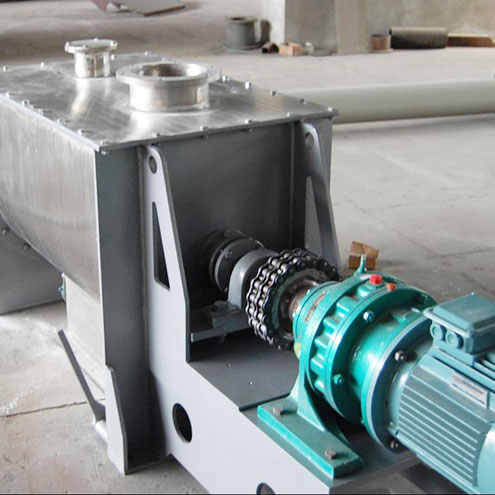

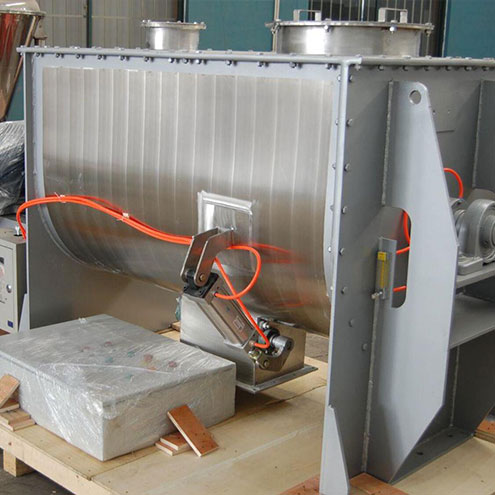

Ribbon mixer is a high efficiency, widely applicated single shaft mixer, half open tubular cylinder body on the main shaft of coiled spiral form and with a certain proportion of the double spiral ribbon. Swirling spiral belt attached to the main shaft, able to push the material with the spiral belt spiral direction. Mixer horizontal cylinder central opening at the bottom of the discharging mouth, the outer spiral structure with the spindle rotation direction of the spiral belt drive are compared.in the inside of the material to the central discharging mouth discharge, ensure cylinder body material discharging without blind Angle.

share:

Description of Helical Ribbon Mixer:

Ribbon mixer is a high efficiency, widely applicated single shaft mixer, half open tubular cylinder body on the main shaft of coiled spiral form and with a certain proportion of the double spiral ribbon. Swirling spiral belt attached to the main shaft, able to push the material with the spiral belt spiral direction. Mixer horizontal cylinder central opening at the bottom of the discharging mouth, the outer spiral structure with the spindle rotation direction of the spiral belt drive are compared.in the inside of the material to the central discharging mouth discharge, ensure cylinder body material discharging without blind Angle.

Working principle of Helical Ribbon Mixer:

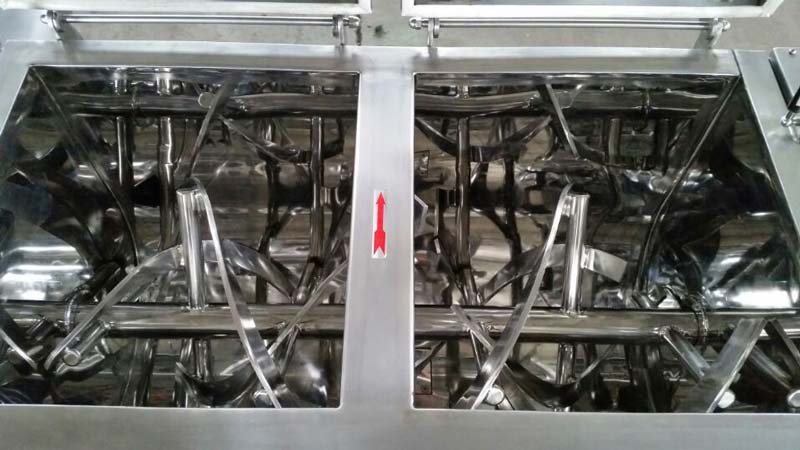

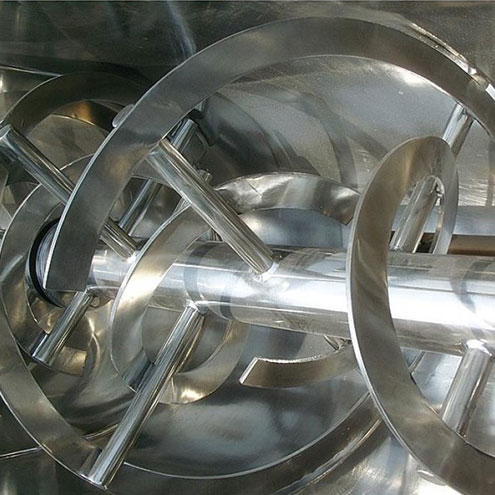

Outside screw with coiled form in the rotating direction pushes material from both ends towards the center, and the screw with the materials from the middle to both ends, the formation of mixed convection. Mix the material in a relatively short time.

Application of Helical Ribbon Mixer:

The equipment used in dry powder, granule, liquid and the low viscosity of the slurry or paste.

Typical Technical Data of Energy-efficient Sand Dryer:

Model Max.
working
volume
Rotating speed Motor power Machine dimensions Weight Outlet size Inlet size
(RPM) (KW) (mm) (Kg)
SLD-0.1 60L 76 2.2 1080×758×615 330 Can be customized Can be customized
SLD-0.3 180L 66 4 1550×812×1015 780
SLD-0.5 300L 66 5.5 1975×1059×1120 955
SLD-1 600L 41 11 2340×1380×1455 1400
SLD-2 1200L 33 18.5 2480×1651×1805 2500
SLD-3 1800L 33 22 2945×1896×1980 3300
SLD-4 2400L 29 22 3038×1946×2205 3600
SLD-5 3000L 29 30 3932×2010×2035 4620
SLD-6 3600L 26 37 3938×1882×2246 5300
SLD-8 4800L 26 45 3986×2160×2516 6800
SLD-10 6000L 19 55 4500×2270×2667 8900
SLD-12 7200L 19 55 4500×2466×2785 9520
SLD-15 9000L 17 75 5363×2470×3020 9950
SLD-20 12000L 17 75 5670×2650×3497 11140

CH Type Blade Mixer/Blender (with internal heating)
