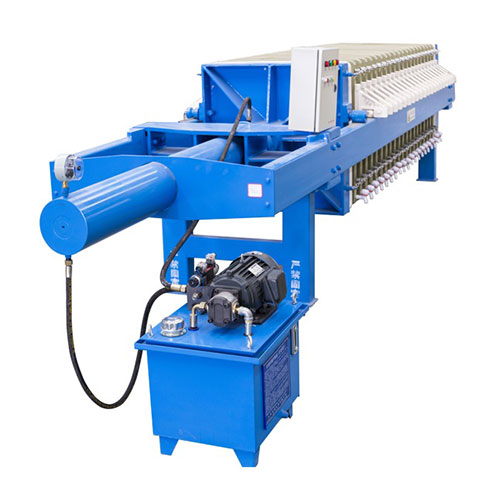

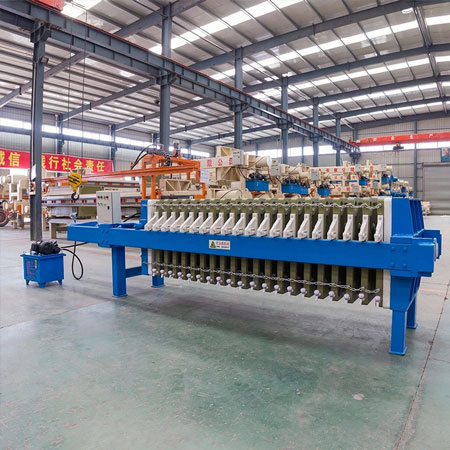

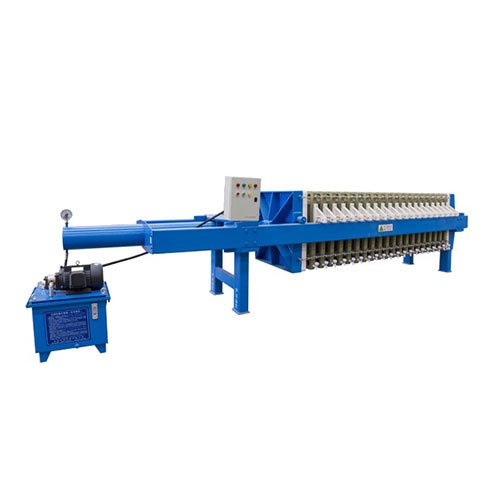

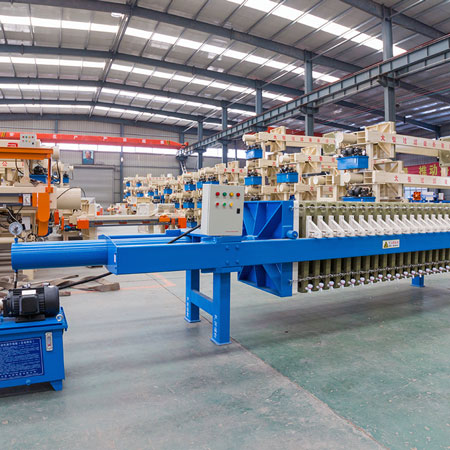

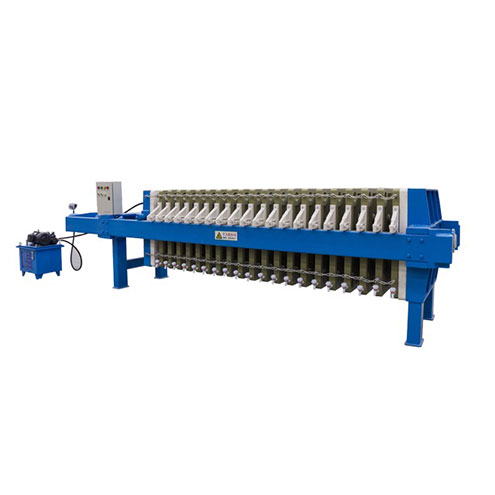

Once-open Filter press

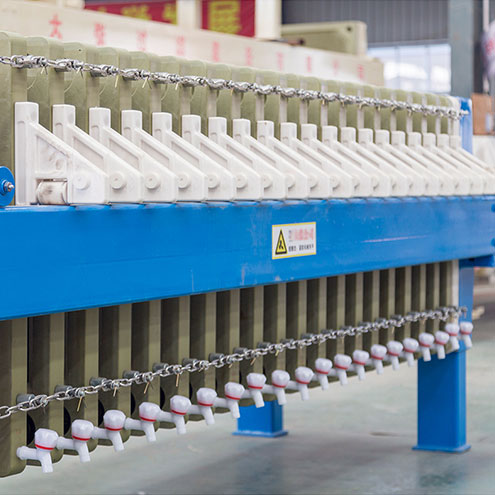

With extended oil cylinder and walking beams, fast open filter press can release all filter plates(cakes) at a single pull via the chains connecting each plate. It can also realize full automatic cake discharge without manual intervention when installed with plate shaking device.

Send E-mail Get Price

Once-open Filter Press:

Advantages: higher efficiency,plate shaking available,high automization and less labour demand.

Disadvantages: limitation on total number of plates(normally no more than 30 pcs), only suitable for some specific areas.

Typical Technical Data:

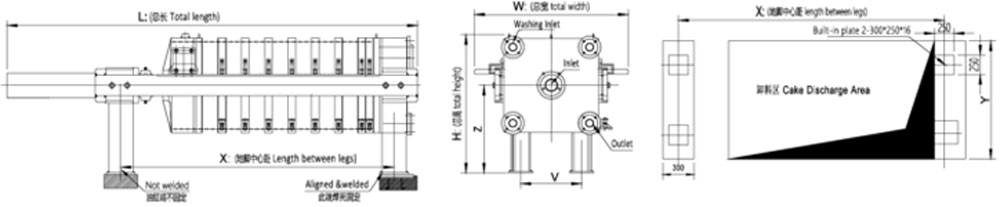

Model	Filter area (m2)	Plate size (mm)	Cake thickness (mm)	Chamber volume (L)	Number of plates (pcs)	Filtration pressure (MPa)	Motor power (Kw)	Total weight (kgs)	Overall dimension LxWxH (mm)	Foundation Size (mm)
										X	V	Y	Z
KXY4/500-30U	4	500 x500	30	60	9	>= 0.6	2.2	890	2230x800x900	1550	390	700	560
KXY5/500-30U	5			79	12			920	2630x800x900	1800
KXY6/700-30U	6	700 x700	30	95	7	>= 0.6	2.2	1450	2200x1050x1150	1490	560	1110	700
KXY8/700-30U	8			119	9			1500	2400x1050x1150	1640
KXY10/700-30U	10			154	12			1610	2540x1050x1150	1890
KXY12/700-30U	12			178	14			1720	3130x1050x1150	2140
KXY15/700-30U	15			226	18			1880	3550x1050x1150	2490
KXY10/870-30U	10	870 x870	30	154	7	>= 0.6	2.2	1940	2720x1270x1300	1580	700	1380	785
KXY20/870-30U	20			307	15			2230	3500x1270x1300	2430
KXY18/1000-30U	18	1000 x1000	30	270	10	>= 0.6	4	1850	3470x1400x1400	2320	780	1480	1000
KXY35/1000-30U	35			525	20			2540	5470x1400x1400	3620
KXY28/1250-30U	28	1250 x1250	30	420	10	>= 0.6	4	3600	4110x1770x1600	3220	850	1740	1250
KXY55/1250-30U	55			833	20			5000	6510x1770x1600	4320
