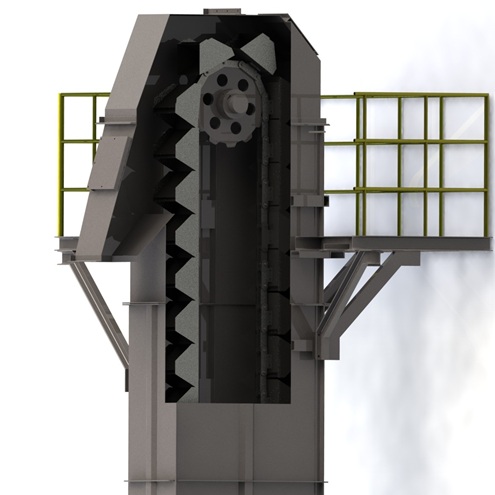

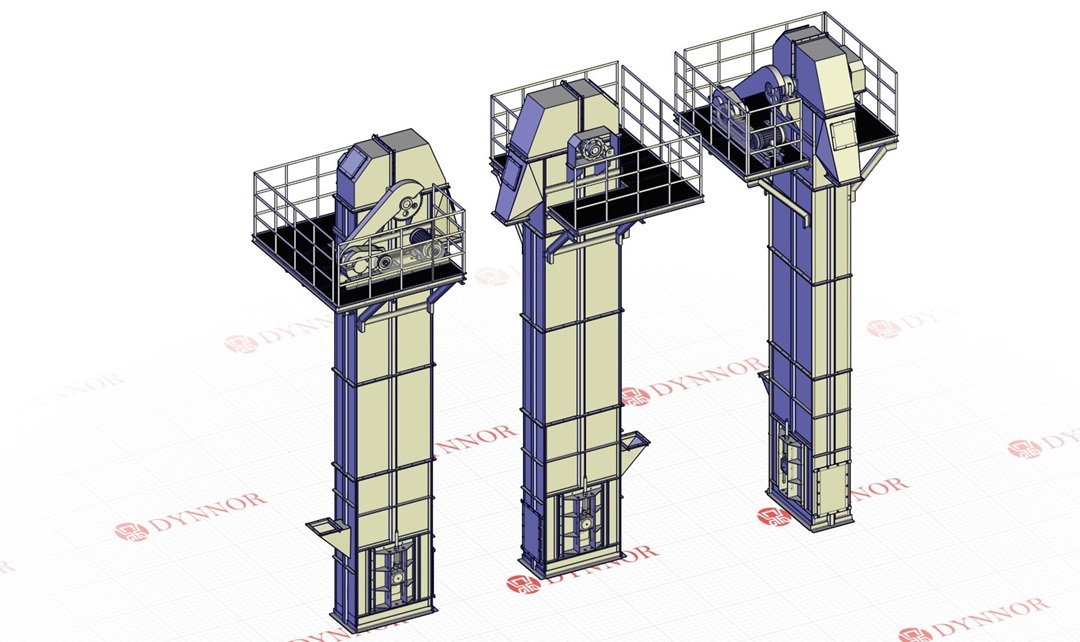

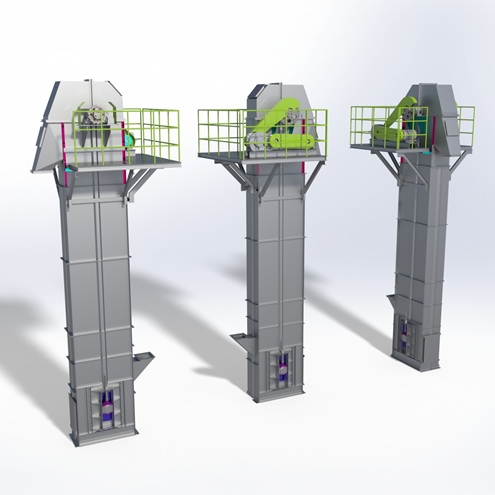

NE bucket elevator has the advantages of big conveying capacity, high lifting height, stable and reliable performance and long service life. It is applicable for conveying materials in the form of power, granules and small lumps, such as coal, cement, sand, gravels and ore. Maximum working temperature 250 C, maximum lifting height 40m. It is allowed to convey materials with higher temperature when armed with special circle chain structure.
NE bucket elevator has the advantages of big conveying capacity, high lifting height, stable and reliable performance and long service life. It is applicable for conveying materials in the form of power, granules and small lumps, such as coal, cement, sand, gravels and ore. Maximum working temperature 250 C, maximum lifting height 40m. It is allowed to convey materials with higher temperature when armed with special circle chain structure.
Technical Data
| Model | Capacity | Lifting speed | Feed size | Bucket | Bucket distance | |
| (m3/h) | (m/s) | (mm) | volume(L) | width(mm) | (mm) | |
| NE15 | 15 | 0.5 | <20 | 2.5 | 250 | 203 |
| NE30 | 32 | 0.5 | <30 | 7.8 | 300 | 305 |
| NE50 | 60 | 0.5 | <30 | 15.7 | 300 | 305 |
| NE100 | 110 | 0.5 | <30 | 35 | 400 | 400 |
| NE150 | 170 | 0.5 | <30 | 52.5 | 600 | 400 |
| NE300 | 320 | 0.5 | <40 | 127.5 | 700 | 500 |
| NE500 | 470 | 0.5 | <40 | 260.9 | 700 | 700 |
